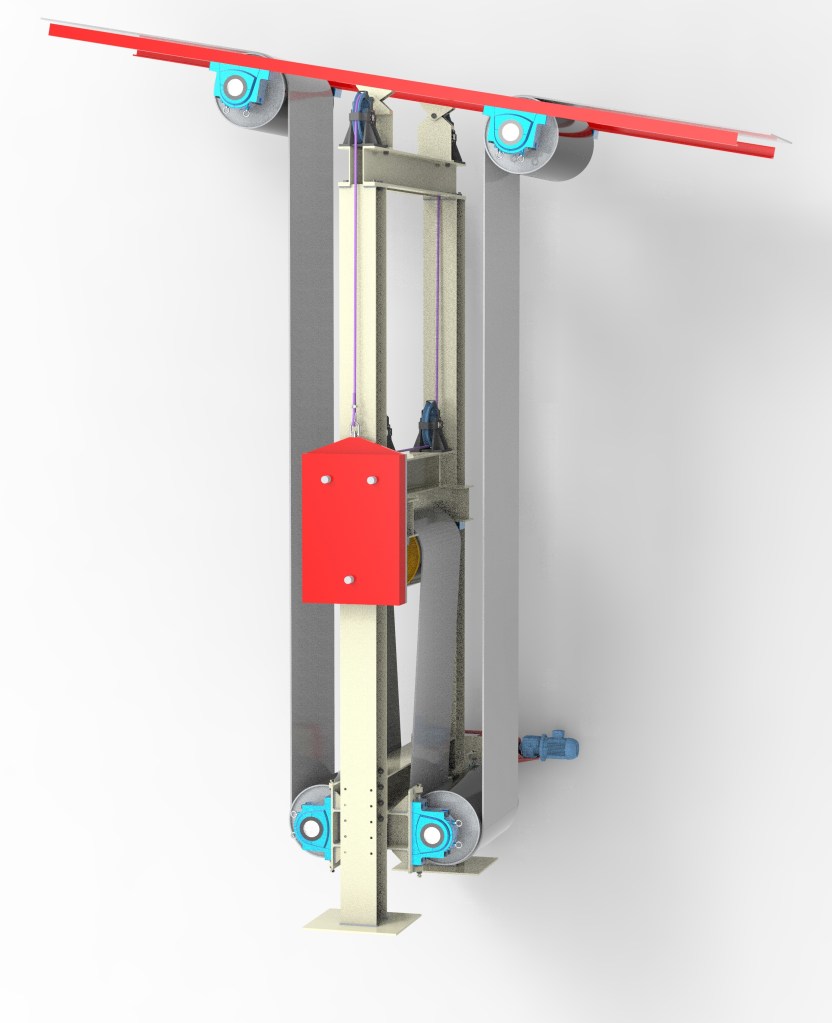

Conveyor Vertical Safety Take-up Station

KCM Engineers cc developed and patented the Vertical Safety Take-up Station (VSTS) for most plant conveyors to facilitate easy take up isolation.

The VSTS enables the operator to remove the preliminary belt tension and all stored energy, caused by the take-up, with the push of a button. Workers are completly removed from the physical isolation task. When the tension is removed, the carriage and counterweights are lowered to ground level.

With its vertical design and integrated counterweight system, the footprint of the take-up is minimal. The VSTS will fit almost all the time into the existing space as your current gravity take-up when retrofitting is considered.

• The VSTS is developed and patented by KCM Engineers cc.

• SA Patent No. 2019/05974
• Patent USA 11242205B2

• The VSTS can replace existing gravity take-ups or installed in new conveyor systems giving you the same gravity performance.

• The VSTS gives you the benefit of releasing take-up potential energy with the push of a button. No mechanical isolation necessary.

• NO Lifting equipment necessary as all components are lowered electrically to ground level, take-up carriage and counterweights.

Current Models Available

Other sizes available on request

MODEL	BELT	MAX CW
VSTS600	600mm	4800 kg
VSTS750	750mm	6000 kg
VSTS900	900mm	7200 kg
VSTS1050	1050mm	8400 kg
VSTS1200	1200mm	9600 kg
